Name: Portable Water Well Drilling Machine Geotechnical Soil Test And Core Drilling Rig
Brand: CHANGTAN
Price: 3600 USD

Model Number : XY-1B

Place of Origin : CHANGSHA HUNAN

Brand Name : CHANGTAN

Certification : SGS/CE/ISO9001

MOQ : 1 SET

Price : 3600USD-8000USD

Packaging Details : Exported wooden box

DRILLING CAPACITY : Depth 120m / 42

Type : Twin cylinder, Oil-hydraulic feed system, Spindle type

MUD PUMP : Horizontal Single Cylinder Piston Pump

NET WEIGHT : 480kgs (without power)

Contact Now

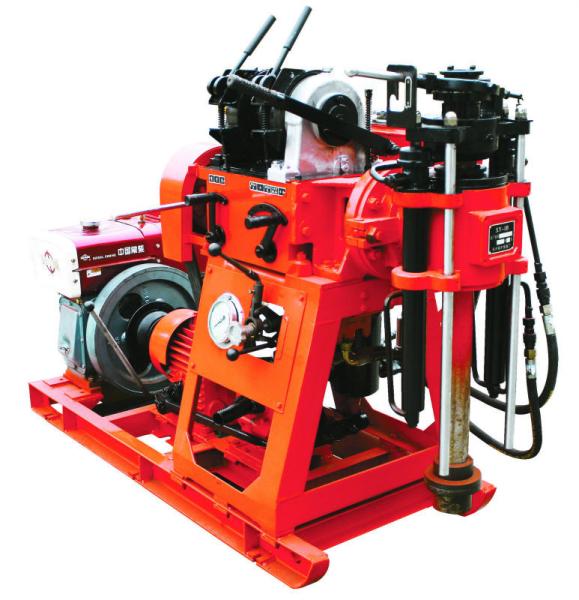

Portable Water Well Drilling Machine Geotechnical Soil Test And Core Drilling Rig

XY-1BT PORTABLE DRILLING RIG WITH MUD PUMP INTEGRATED

Mud pump is mounted on XY-1BT
Multiple revolving speed grades for selection, fitting different drilling tasks.
2-wheels trailer, portable, easy to move by towing the trailer.

DRILLING CAPACITY	Depth 120m / 42
SWIVEL HEAD
Type	Twin cylinder, Oil-hydraulic feed system, Spindle type
Angle Range	360°
Stroke of Spindle	400mm
Revolving Speed of Spindle	140 305 480 1050 rpm
Max. Spindle Torque	500N*m
Max. Thrust Capacity	20 kN
Max. Balance Capacity	30 kN
AVAILABLE RODS	42mm, 50mm, AW, BW
HOIST DRUM
Type	Planetary grear, hand brake type
Hoisting Capacity	10kN at single pull line
Rope Speed	0.46 0.87 1.48 3.23 m/s at single pull time
Drum Capacity	*Φ9.3mm × 18m
OIL - HYDRAULIC
Type	Constant delivery, gear type pump
Delivery Capacity	31L/min @ 2200r.p.m
Max. Pressure	25MPa
POWER	Diesel engine ZS1100, 12.1KW at 2200 r.p.m
	Or electronic Motor, 11KW at 1460 r.p.m
MUD PUMP	Horizontal Single Cylinder Piston Pump
MUD PUMP	100L/min, 1.5Mpa
NET WEIGHT	480kgs (without power)
DIMENSION(L×W×H)	1800 × 835 ×1150mm
